Power1 LED rear light
Power1 LED rear light

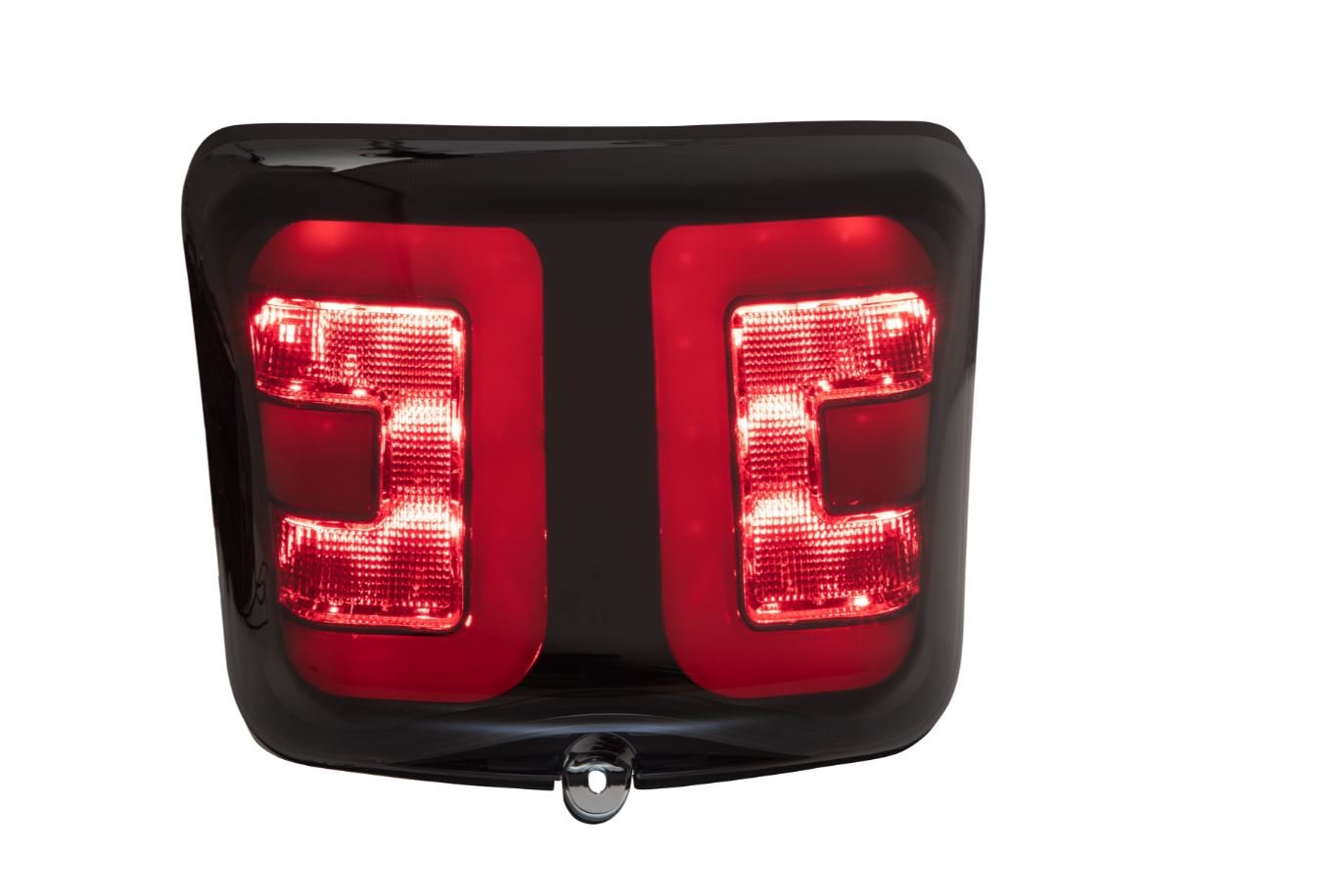

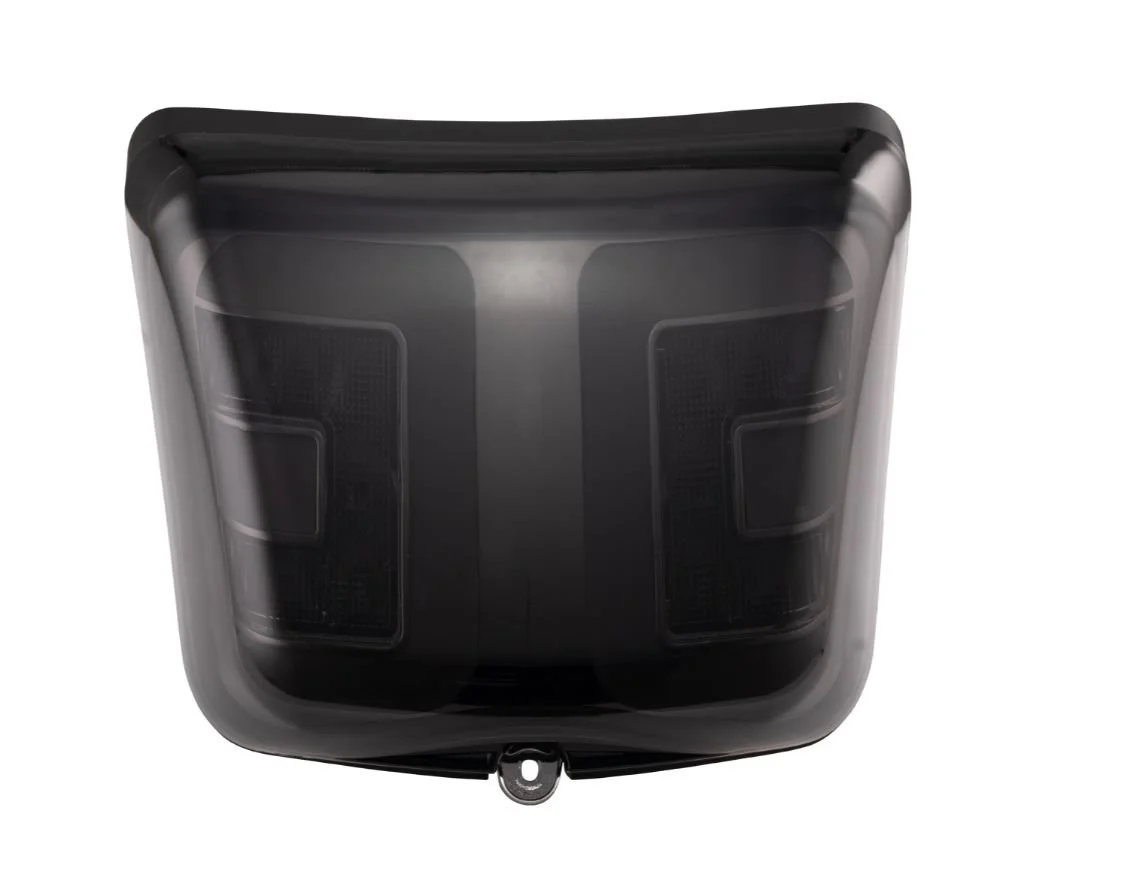

The Power1 LED rear light for Vespa GTS/GTV models produced from 2014 to 2023 ( Note the unit will only fit an existing fit framed rear light) includes an array of very bright and powerful LED bulbs.
Bright LED bulb
Includes EU approval number.
Integrated blinking function.
The extremely bright LED tubes within the rear light do not only guarantee sufficient visibility during daylight hours. This rear light has an EU approval number and a number plate illumination function. Another special feature of this light that cannot be ignored is the integrated blinking function. An absolute highlight for LED fans and technology freaks, this feature needs to be connected to the wiring loom of the scooter.
Power1 LED Integrated Tail Light General Installation Instructions
Carefully read instructions in their entirety before installation.
Professional installation is recommended. Always use proper safety measures during the installation.
Remove the negative terminal (Black) from the scooter's battery. Reconnect on completion of the installation.
Note: Enabling the indicator function requires splicing into the rear wiring harness.
Wiring harness location: Rear chassis behind the rear light.
Block connectors. These are manufacturing year-dependent; you will have one or the other, not both.
White plug: GTS from year 2014-on: Black plug: GTS from year 2018-2022.
Wiring for Indicator Function
Located on the rear light, the blue wire is the right indicator. Splice this to the blue & white wire in the rear wiring harness.
Located on the rear light, the green wire is the left indicator. Splice this to the pink wire in the rear wiring harness.

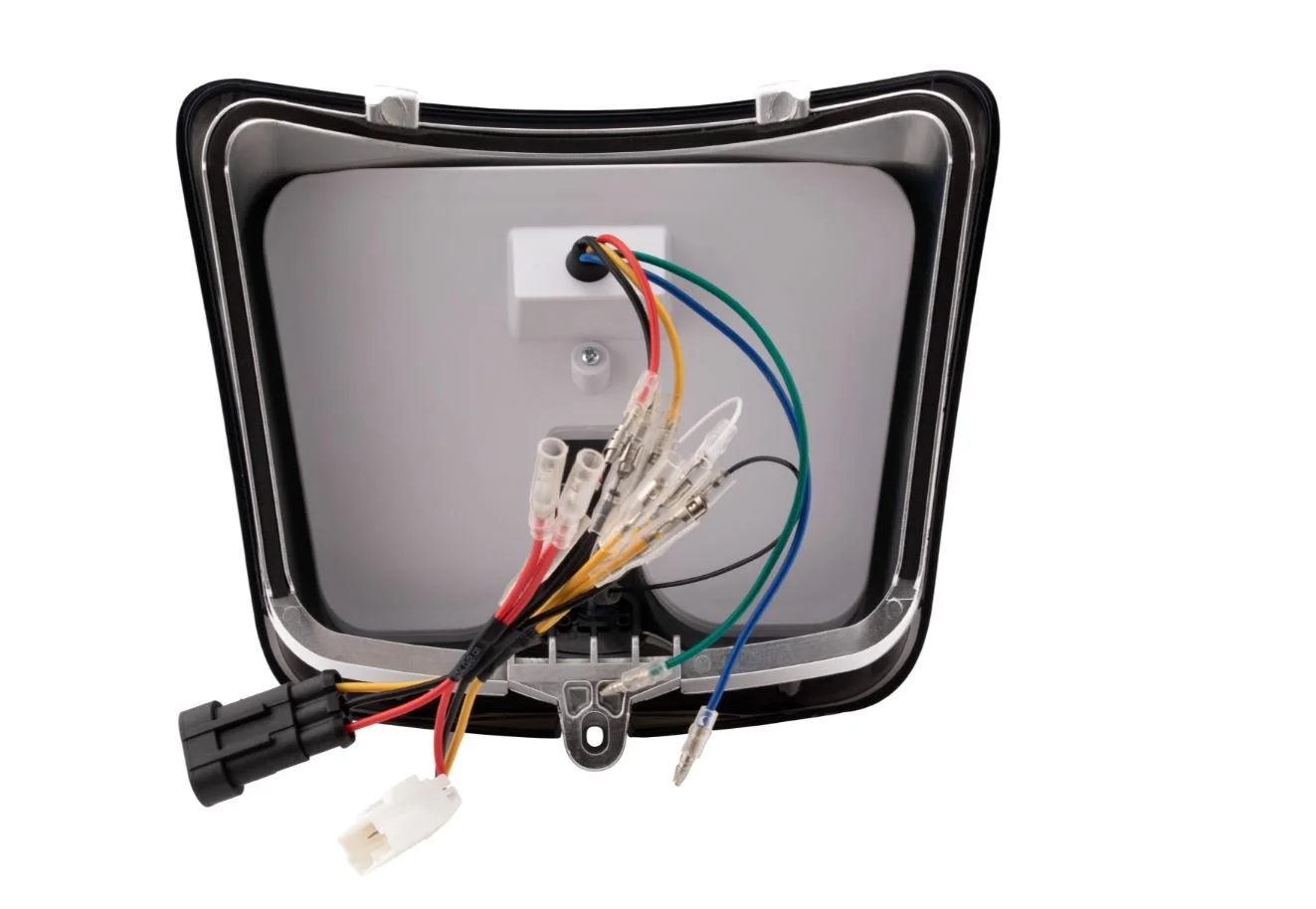

Colour codes for the Power1 rear light
Yellow: rear running light
Red: brake light
Black cable ground

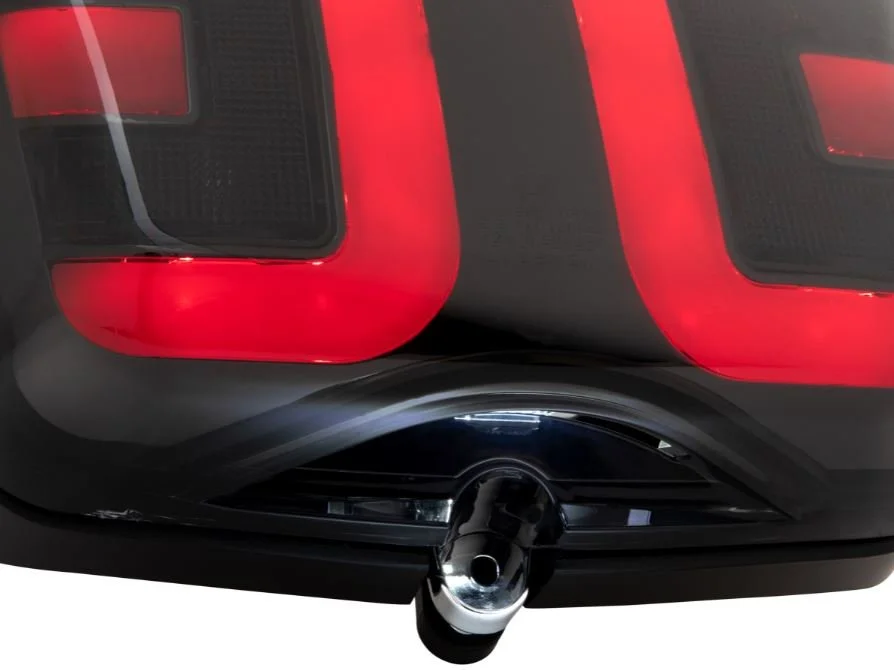

White: number plate light
Green: indicator left
Blue: indicator right
